Allegra X-30
Máy ly tâm để bàn thuộc dòng Allegra® X-30 mang lại hiệu suất tuyệt vời và vận hành dễ dàng trong một thiết kế nhỏ gọn giúp tiết kiệm thời gian quý giá và không gian phòng thí nghiệm.
- Tốc độ và lực g cao nhất trong loại sản phẩm này
- Cài đặt chạy đơn giản và nhanh chóng
- Linh hoạt với thư viện rôto mở rộng cho nhiều ứng dụng
- Thiết kế nhỏ gọn – Chỉ rộng 18" (46 cm)
- Rôto văng và góc cố định BioCertified*
Features
Compact and Powerful
- Only 18" wide (46cm)
- Save valuable lab space and priceless running time
- Highest RPMs and g force in its class
Accommodating Your Application Needs
- Cell culture processing
- Blood sample preparation
- Microplate applications
Available Rotor Versatility
- 13 different rotors
- Multiple pre-bundled application packages
- Three different ways to spin 1.5mL and PCR tubes
- Spin 500 µL to 1.6L with the SX4400 Swinging Bucket Rotor
Easy to Use
- Streamlined user interface
- Digital display makes it quick to set and easy to run
Explore Allegra X-30 Models
Related Parts for Allegra X-30

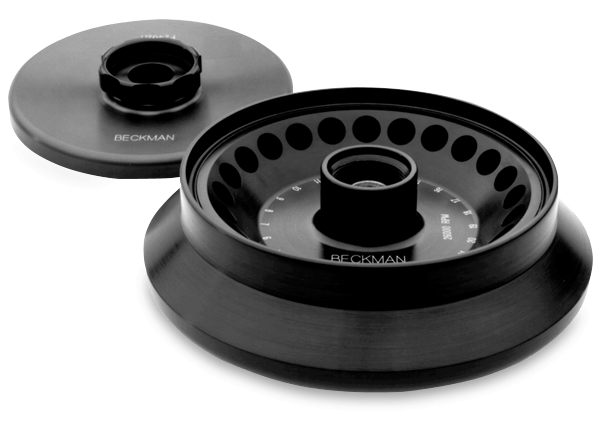

F2402H Biocontainment Rotor, Aluminum- 24 x 2.0 mL, 26,000 rpm, 61,970 x g
F2402H Rotor Assembly, Fixed-Angle, Bio-certified, Aluminum; Major applications: Pelleting subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing, 0" class. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 26,000, 14,500, 15,500, 16,000, 18,000; Max RCF, 61,970, 19,309, 22,065, 23,511, 29,756. Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge, Allegra X-30 Series centrifuges, and the Allegra X-22; Series centrifuges. This rotor is rated at a lower speed in the Allegra X-30, X-30R, X-22, X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-30 Series, Allegra® X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

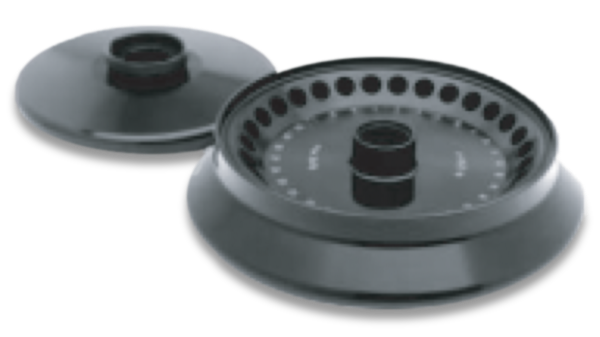

FX301.5 Fixed-Angle Aluminum Rotor- 30 x 2.2 mL, 16,000 rpm, 28,672 x g
FX301.5 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting, subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. Place: 30 Tube Volume: 1.5 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0". Allegra X-22; Allegra X-22R; Max RPM 13,200, 14,000. Max RCF, 19,515. For use in Allegra X-22 Series centrifuges and discontinued GS-15 Series and Allegra 21 Series centrifuges.

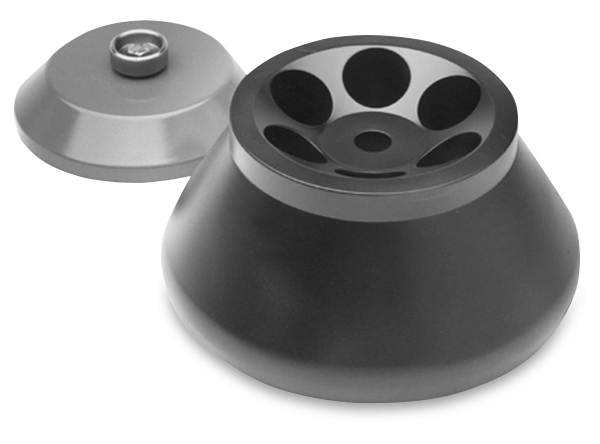

F0630 Fixed-Angle Aluminum Rotor 6x38.5 mL, 26,200 rpm, 59,860 x g
F0630 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Allegra 64R; Allegra X-22; Allegra X-22R; Allegra X-30; Allegra X-30R; Max RPM 26,200; 14,500; 15,300; 16,000; 18,000; Max RCF, 59,860, 18,367, 20,450, 22,364, 28,305. For use in Allegra 64R, Allegra X-22, X-30 Series centrifuges, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

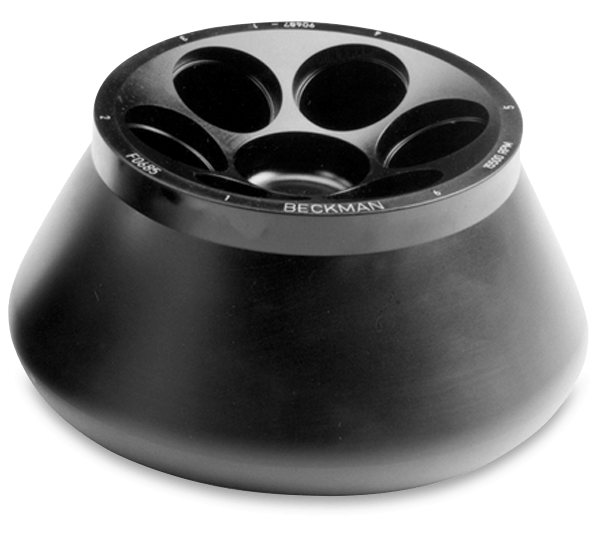

F0685 Fixed-Angle Aluminum Rotor 6 x 85 mL, 10,000 rpm, 10,864 x g
F0685 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 6; Tube Volumes: 85 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable". Allegra 64R, Allegra X-22, Allegra X-22R; Max RPM 15,500, 8,000, 10,000; Max RCF 26,320, 6,953, 10,864.
Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge and the Allegra X-22 centrifuge. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

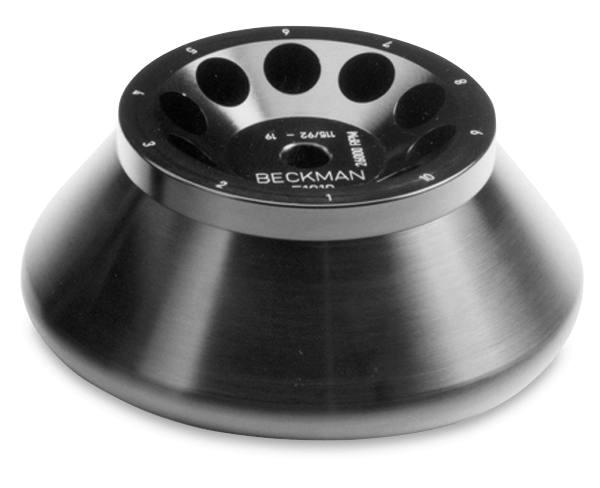

F1010 Fixed-Angle Aluminum Rotor 10 x 10 mL, 26,000 rpm, 57,440 x g
F1010 Fixed-Angle Rotor (35 Angle), Aluminum. Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing; WIDTH: 524px; HEIGHT: 100px; Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R. Max RPM 26,000, 14,500, 15,300, 16,000, 18,000. Max RCF 57,440, 17,896, 29,926, 21,791, 27,579. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra X-22 and Allegra X-30 centrifuges. This rotor is rated at a lower speed in the Allegra X-30 and X-30R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

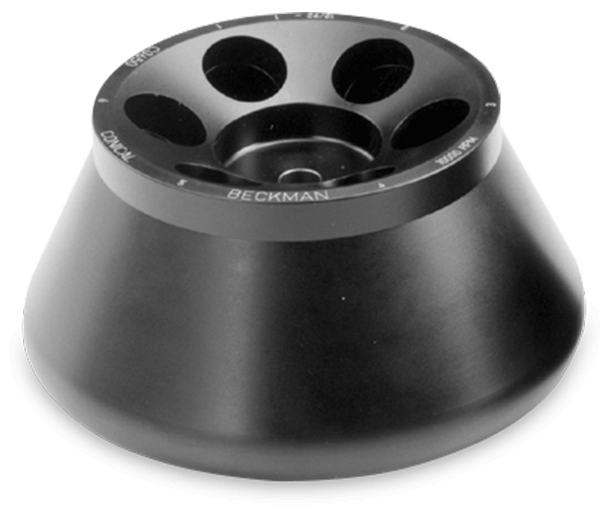

C0650 Fixed-Angle Conical Tube Rotor, Aluminum
C0650 Fixed-Angle Rotor, Aluminum; Major applications: General pelleting of cells, bacteria, and food products; separation of proteins, viruses, and subcellular fractions; phase separation; and binding studies. Places: 6 Tube Volumes: 50 mL conical tubes 1" cellpadding 4" cellspacing 1" style; WIDTH: 497; HEIGHT: 145px; Max RPM; Notes: Maximum speed/RCF are different in the Allegra; 64R centrifuge, Allegra; X-30 Series centrifuges, and the Allegra; X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra; X-22 and X-22R centrifuges, so forces and k factors are different. For use in Allegra; 64R, Allegra; X-30 Series, Allegra; X-22 Series, and discontinued GS-15 Series, Allegra; 21 Series and Avanti; 30 centrifuges. Tubes and bottles not included.

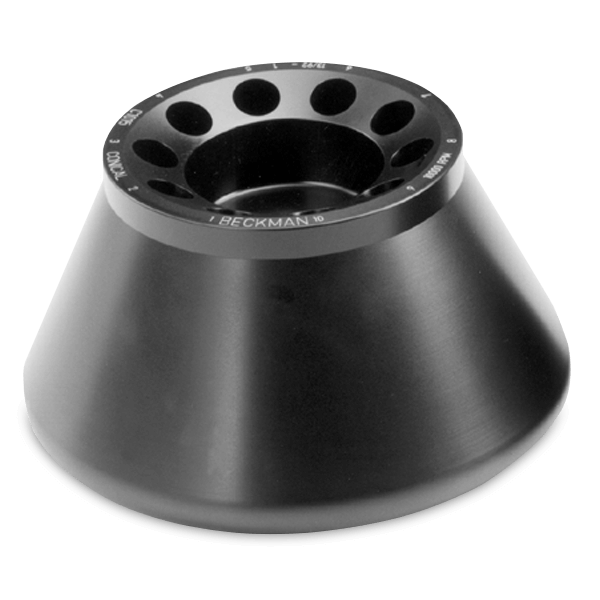

C1015 Fixed-Angle Conical Tube Rotor, Aluminum
C1015 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting of subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae.

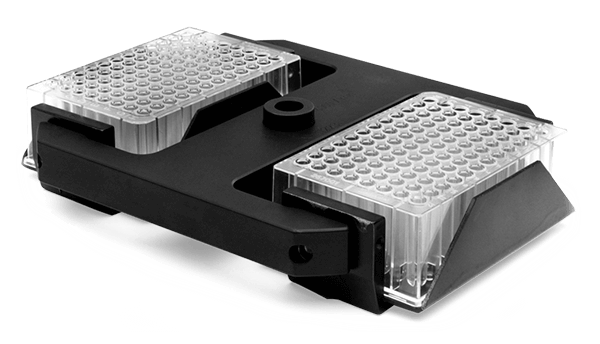

S2096 Microtiter plate unshielded swinging bucket rotor
S2096 Swinging-Bucket Rotor (Unshielded), Anodized Aluminum Major applications: Serial dilution of small liquid volumes.

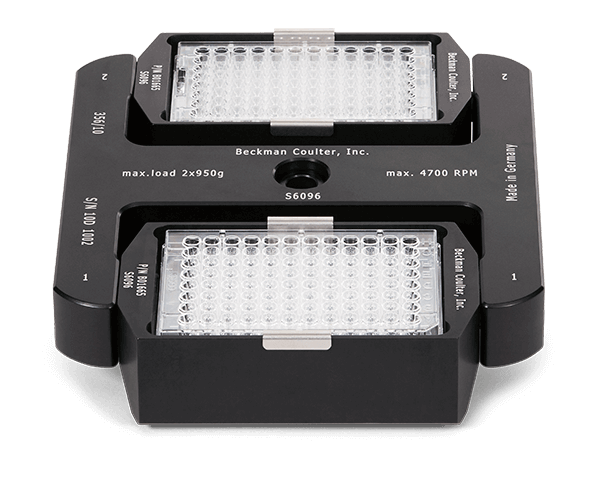

S6096 Swinging-Bucket Aluminum Rotor with Microplates
S6096 Swinging-Bucket Rotor (Unshielded), Anodized Aluminum. Major applications: Serial dilution of small liquid volumes. Plates: 2 x 3 Microplates and 2 x 1 Deep-Well plates. For use in Allegra® X-30 Series centrifuges.

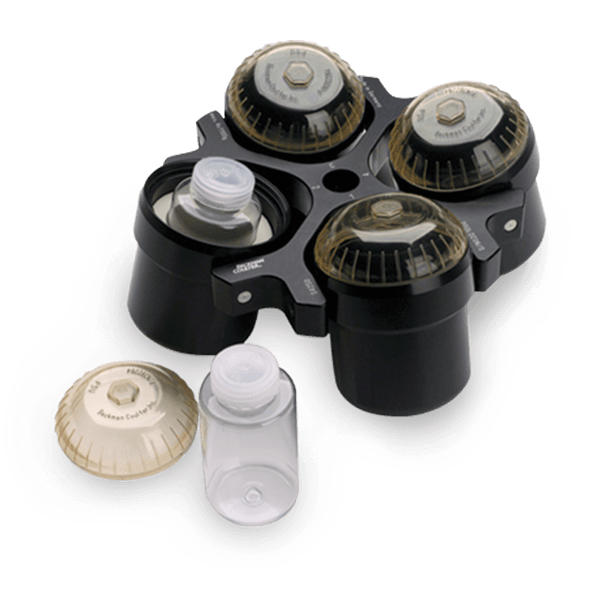

SX4250 Swinging-Bucket Aluminum Rotor
SX4250 Swinging-Bucket Rotor, Aluminum. Major applications: Rapidly sediments protein precipitates, large particles, cells, and cell debris. Can also be used for binding studies and for separating serum from whole blood.
Place: 4 Volume: 250 mL Swinging Bucket Rotor with 4 Buckets, Allegra X-22, Allegra X-22R, Max RPM 4,200, 4,500; Max RCF, 3,398, 3,901. For use in Allegra X-22 Series centrifuges.

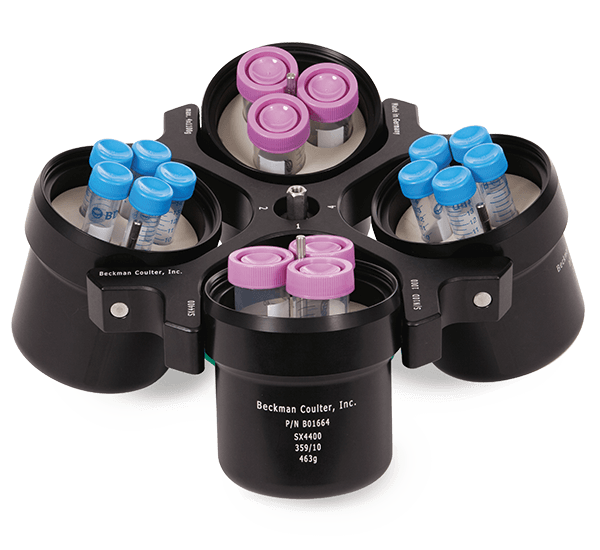

SX4400 Swinging-Bucket Aluminum Rotor and Buckets
SX4400 Swinging-Bucket Rotor, Aluminum. Major applications: Rapidly sediments protein precipitates, large particles, cells, and cell debris. Can also be used for blood sample preparation. Place: 4 Volume: 400 mL Swinging Bucket Rotor with 4 Buckets; Allegra X-30, Allegra X-30R; Max RPM 4,200, 4,700; Max RCF, 3,398, 4,255. For use in Allegra X-30 Series centrifuges.

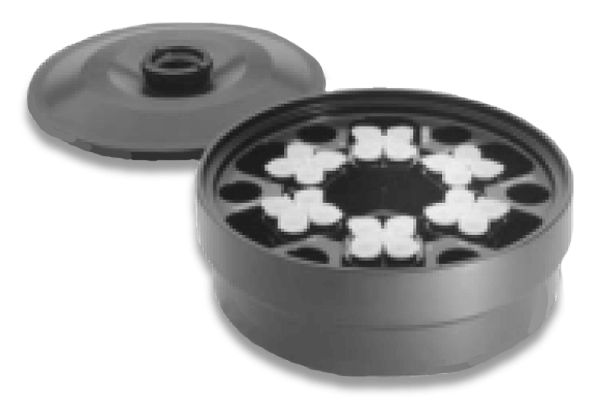

SX241.5 Swinging-Bucket Aluminum Rotor
SX241.5 Swinging Bucket Rotor, Aluminum. Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Place: 24 Tube Volume: 1.5 mL microcentrifuge tubes Allegra X-22, Allegra X-22R. Max RPM 12,500, 14,000. Max RCF,
12,950, 16,244. For use in Allegra X-22 Series, and discontinued GS-15 Series and Allegra 21 Series centrifuges.

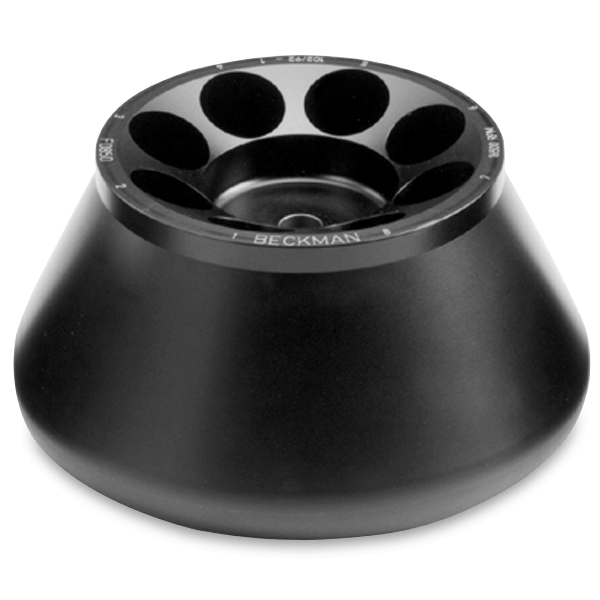

F0850 Fixed-Angle Aluminum Rotor 8 x 50 mL, 16,500 rpm, 29,220 x g
F0850 Fixed-Angle Rotor, Aluminum; Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: 8 Tube Volumes: 50 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 16,500, 9,000, 10,000, 9,000, 11,400. Max RCF, 29,220, 8,528, 10,528, 8,528, 13,682. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra 30 Series; centrifuges and the Allegra X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
Product Specifications
| Acceleration | 10 acceleration profiles |
| Deceleration | 10 deceleration profiles |
| Timed Run | To 9 hrs 59 mins or Continuous run (8) |
| Max Capacity Volume Range | 4 - 400 mL |
| Temperature Range(s) | Ambient temperature range: +4° to +35°C |
| Friction Reduction System | Asynchronous 3-phase Direct Drive |
| Item Specifications Referenced | A99468 |
