Allegra 64R
Được thiết kế để đạt được độ tin cậy và kết quả nhất quán, máy ly tâm để bàn Allegra® 64R thực hiện phân tách tốc độ cao mà chỉ chiếm một phần nhỏ không gian trên mặt bàn.
- 64,400 x g
- 30,000 vòng/phút
- Thời gian tăng tốc và giảm tốc nhanh cho phép quay nhanh hơn
- Lý tưởng cho phân đoạn dưới mức tế bào, phân lập và tinh chế protein và tách chiết virus và tách chiết theo pha..
Features
Ideal for subcellular fractionation, protein isolation and purification, viruses and phase extractions, it delivers outstanding high-speed performance in a compact design
Optimal for Subcellular Fractionation, Proteins and Viruses
- 64,000 x g (30,000 rpm) with fixed-angle rotor
- Spin tubes from 0.25 up to 85 mL
- Operating temperature from 2º C to 40º C
- Rotors certified by Porton Down UK for Biocontainment
The solution for high-speed Seperations
- Cell gradient spins
- Nucleic acid precipitations
- DNA mini-preps
- Phase extractions
Easy-to-use control panel
- Displays actual speed, RFC, time & temperature
- Acceleration/deceleration rates that can be customized to profiles for routine runs
Additional features
- Safety door interlock prevents contact with spinning rotor
- Flexible drive shaft to compensate for drive imbalances
- Compatible with thirteen rotors
Explore Allegra 64R Models
Related Parts for Allegra 64R
F2402H Biocontainment Rotor, Aluminum- 24 x 2.0 mL, 26,000 rpm, 61,970 x g
F2402H Rotor Assembly, Fixed-Angle, Bio-certified, Aluminum; Major applications: Pelleting subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing, 0" class. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 26,000, 14,500, 15,500, 16,000, 18,000; Max RCF, 61,970, 19,309, 22,065, 23,511, 29,756. Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge, Allegra X-30 Series centrifuges, and the Allegra X-22; Series centrifuges. This rotor is rated at a lower speed in the Allegra X-30, X-30R, X-22, X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-30 Series, Allegra® X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

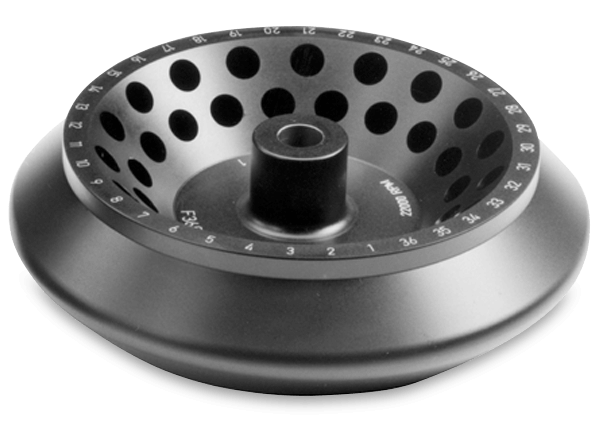

F3602 Fixed-Angle Aluminum Rotor 36 x 2 mL, 22,000 rpm, 47,618 x g
F3602 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 36 Tube Volumes: 1.5/2.0 mL microcentrifuge tubes; Max rpm: 22,000 rpm; Max Force: 46,530 x g. For use in Allegra 64R and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F1010 Fixed-Angle Aluminum Rotor 10 x 10 mL, 26,000 rpm, 57,440 x g
F1010 Fixed-Angle Rotor (35 Angle), Aluminum. Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing; WIDTH: 524px; HEIGHT: 100px; Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R. Max RPM 26,000, 14,500, 15,300, 16,000, 18,000. Max RCF 57,440, 17,896, 29,926, 21,791, 27,579. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra X-22 and Allegra X-30 centrifuges. This rotor is rated at a lower speed in the Allegra X-30 and X-30R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F0630 Fixed-Angle Aluminum Rotor 6x38.5 mL, 26,200 rpm, 59,860 x g
F0630 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Allegra 64R; Allegra X-22; Allegra X-22R; Allegra X-30; Allegra X-30R; Max RPM 26,200; 14,500; 15,300; 16,000; 18,000; Max RCF, 59,860, 18,367, 20,450, 22,364, 28,305. For use in Allegra 64R, Allegra X-22, X-30 Series centrifuges, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

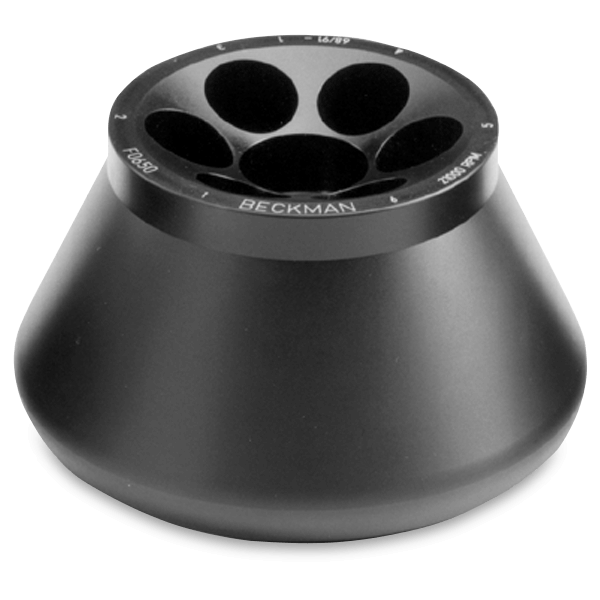

F0650 Fixed-Angle Aluminum Rotor 6 x 50 mL, 21,000 rpm, 41,400 x g
F0650 Fixed-Angle Rotor, Aluminum, Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: Tube Volumes: 50 mL Round-Bottom tubes; Max RPM: 21,000 rpm; Max Force: 41,400 x. For use in Allegra 64R and discontinued Avanti 30 centrifuges.
F0850 Fixed-Angle Aluminum Rotor 8 x 50 mL, 16,500 rpm, 29,220 x g
F0850 Fixed-Angle Rotor, Aluminum; Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: 8 Tube Volumes: 50 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 16,500, 9,000, 10,000, 9,000, 11,400. Max RCF, 29,220, 8,528, 10,528, 8,528, 13,682. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra 30 Series; centrifuges and the Allegra X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

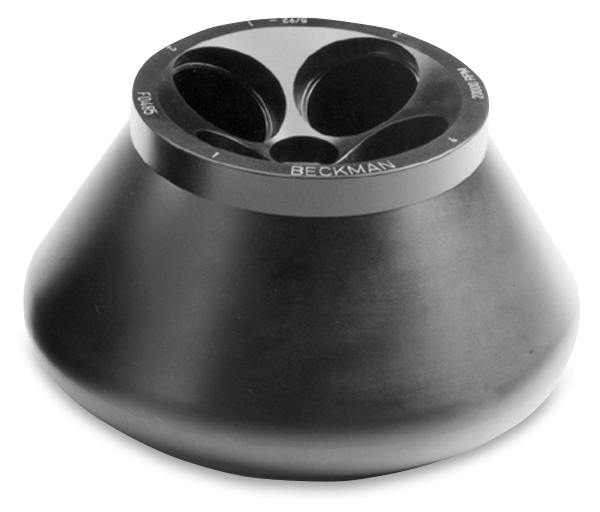

F0485 Fixed-Angle Aluminum Rotor 4 x 85 mL, 20,000 rpm, 40,700 x g
F0485 Fixed-Angle Rotor, Aluminum, Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 4, Tube Volumes: 85 mL tubes, Max RPM: 20,000, Max RCF: 40,240 x g. For use in Allegra; 64R and discontinued Avanti; 30 centrifuges.
F0685 Fixed-Angle Aluminum Rotor 6 x 85 mL, 10,000 rpm, 10,864 x g
F0685 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 6; Tube Volumes: 85 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable". Allegra 64R, Allegra X-22, Allegra X-22R; Max RPM 15,500, 8,000, 10,000; Max RCF 26,320, 6,953, 10,864.
Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge and the Allegra X-22 centrifuge. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
C1015 Fixed-Angle Conical Tube Rotor, Aluminum
C1015 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting of subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae.
C0650 Fixed-Angle Conical Tube Rotor, Aluminum
C0650 Fixed-Angle Rotor, Aluminum; Major applications: General pelleting of cells, bacteria, and food products; separation of proteins, viruses, and subcellular fractions; phase separation; and binding studies. Places: 6 Tube Volumes: 50 mL conical tubes 1" cellpadding 4" cellspacing 1" style; WIDTH: 497; HEIGHT: 145px; Max RPM; Notes: Maximum speed/RCF are different in the Allegra; 64R centrifuge, Allegra; X-30 Series centrifuges, and the Allegra; X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra; X-22 and X-22R centrifuges, so forces and k factors are different. For use in Allegra; 64R, Allegra; X-30 Series, Allegra; X-22 Series, and discontinued GS-15 Series, Allegra; 21 Series and Avanti; 30 centrifuges. Tubes and bottles not included.
H6002 Fixed-Angle Rotor, Aluminum- 84 x 1.8 mL, 12,200 rpm, 12,400 x g
H6002 Horizontal Bowl Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 60 Tube Volumes: 1.5/2.0 mL microcentrifuge tubes. Max rpm: 12,200 rpm; Max RCF: 12,400 x g. For use in Allegra; 64R and discontinued Allegra 21 Series and Avanti 30 centrifuges.
Allegra 64R Product Specifications
| Acceleration | 10 acceleration profiles |
| Deceleration | 10 deceleration profiles |
| Timed Run | Set (up to 9 hours 59 minutes); Continuous |
| Max Capacity Volume Range | - 510 mL |
| Temperature Range(s) | From -20°C to 40°C in 1° increments |
| Item Specifications Referenced | 367588 |
